hot galvanized suspended platform uses a variety of protection devices
PRODUCT DETAILS:
Suspended platform is mainly composed by suspension mechanism,hoist,safety lock,electric control box,working platform.Its structure is reasonable and easy to operate.It can be assembly and disassembly accroding to the actual needs.The suspended platform is mainly used for refurbishment,decoration,cleaning and maintenance of high construction building.
PARAMETERS:
| Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Material | | Steel / Aluminum |
| Rated Capacity | KG | 500 | 630 | 800 | 1000 |
| Rated Lifting Speed | m/min | 9.3 | 9.3 | 8.2 | 8.2 |
| Platform Dimension (L×W×H) | mm | 5000×690×1180 | 6000×690×1180 | 7500×690×1180 | 7500×690×1180 |
| Suspension Mechanism | Front Beam Overhang | mm | 1300 | 1300 | 1300 | 1300 |
| Height Of Front Beam | mm | 1100—1600 | 1100—1600 | 1100—1600 | 1100—1600 |
| Hoist | Type | | LTD5.0 | LTD6.3 | LTD8 | LTD10 |
| Quantity | Piece | 2 | 2 | 2 | 2 |
| Rated Lifting Force | KN | 5 | 6.3 | 8 | 10 |
| Motor Power | KW | 1.1 | 1.5 | 1.8 | 2.2 |
| Diameter Of Wire Rope | mm | 8.3 | 8.3 | 8.6 | 9.1 |
| Voltage | V | 380 | 380 | 380 | 380 |
| Safety Lock | Type | | LDF30 | LDF30 | LDF30 | LDF30 |
| Quantity | Piece | 2 | 2 | 2 | 2 |
| Allow The Impact Force | KN | 30 | 30 | 30 | 30 |
| Angle Adjustment Range | ° | 3—8 | 3—8 | 3—8 | 3—8 |
| Weight | Suspension Platform | KG | 264 | 300 | 371 | 371 |
| Suspension Mechanism | KG | 250(no-including counterweight) | 250(no-including counterweight) | 250(no-including counterweight) | 250(no-including counterweight) |
| Hoist | KG | 48*2 | 48*2 | 48*2 | 48*2 |
| Safety Lock | KG | 5*2 | 5*2 | 5*2 | 5*2 |
| Electrical Control Box | KG | 15 | 15 | 15 | 15 |
| Countweight | KG | 40*25 | 40*25 | 40*25 | 40*25 |
| Wire Rope | Length | m | 100*4 | 100*4 | 100*4 | 100*4 |
| Power Cable | Length | m | 100 | 100 | 100 | 100 |
| | | | | | | | |
APPLICATION:

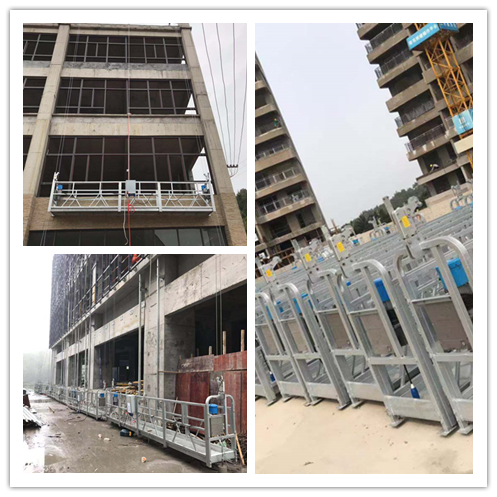

Suspended platforms have taken over the role of scaffolding ladders. Suspended platforms are mechanical devices that lift workers into the air to complete work at hard to reach heights. It is widely used in exterior wall construction, cleaning, maintenance, painting, power station, ship yards, municipal projects, etc.
ADVANTAGES:
Luwang ZLP series electric baskets have passed the test of various complicated conditions with high-quality design concept and mature performance quality. Compared with similar products, they have the advantages of safety, economy, high efficiency and convenience.
